How to override dataset values through Jenkins

Introduction

This article demonstrates how to override dataset values through Jenkins for cloud executions.

Scenario and Instructions

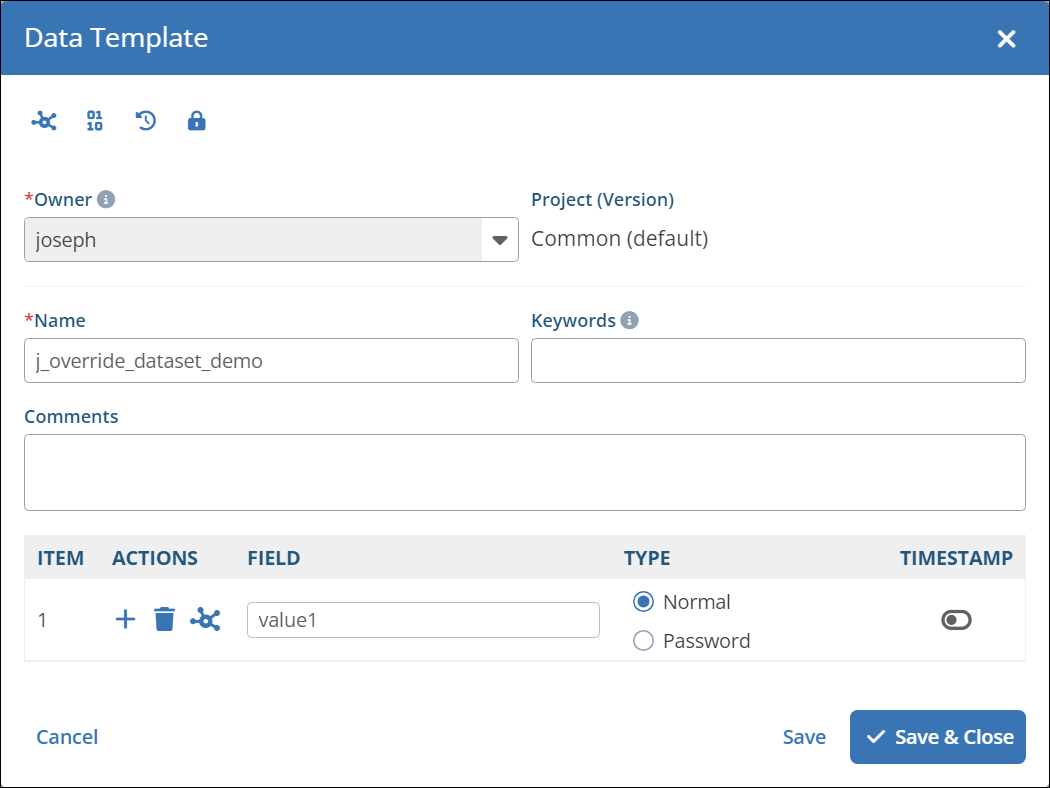

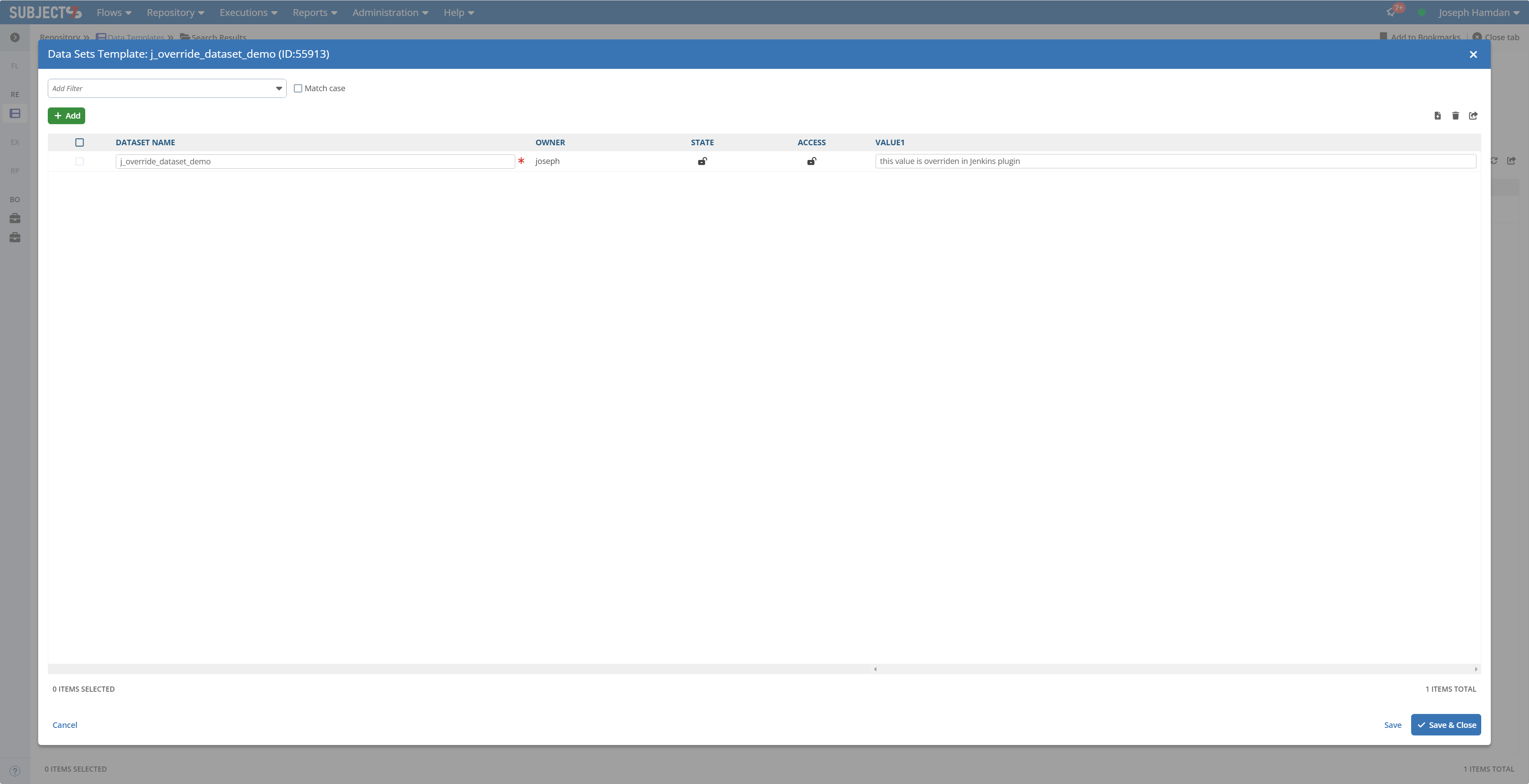

1- Suppose you have the data template "j_override_dataset_demo" with field "value1" and inside this template, you have dataset "j_override_dataset_demo" with value "value1" as in next screenshot.

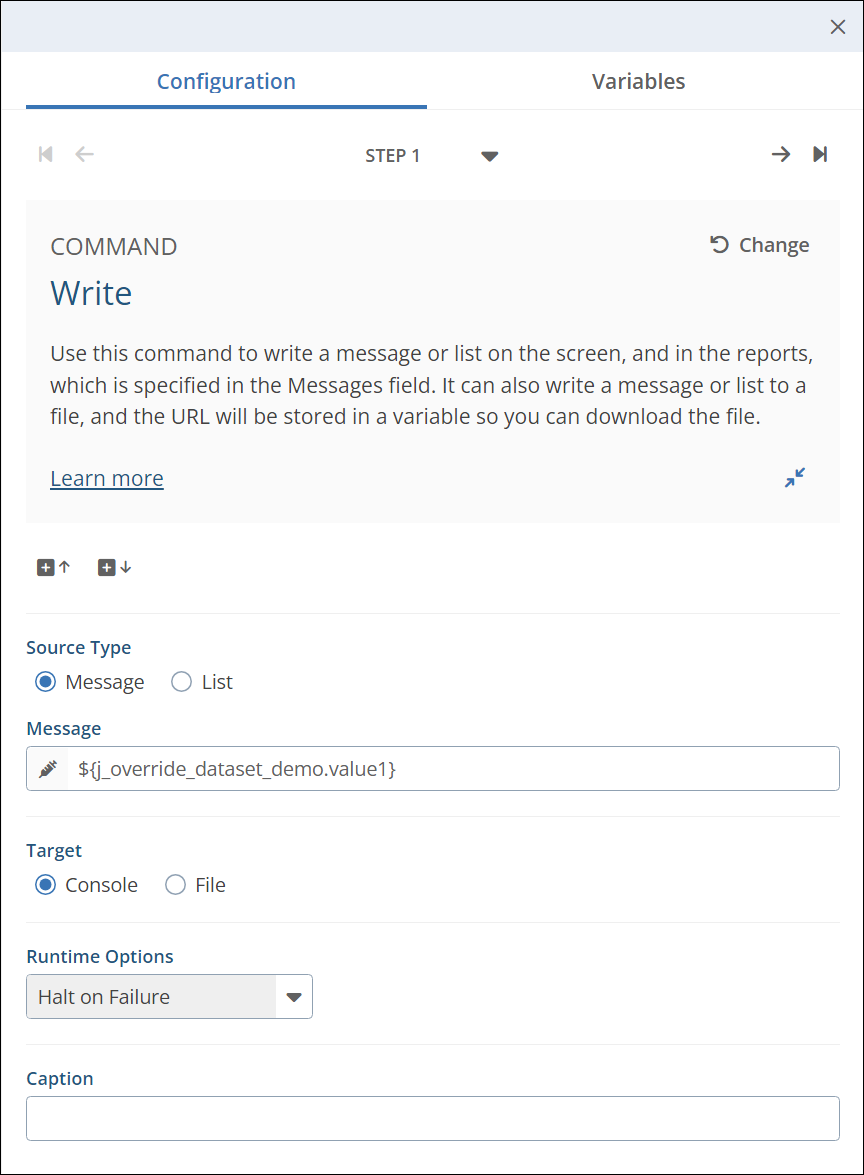

2- Your have a simple test case that prints the dataset value to the console

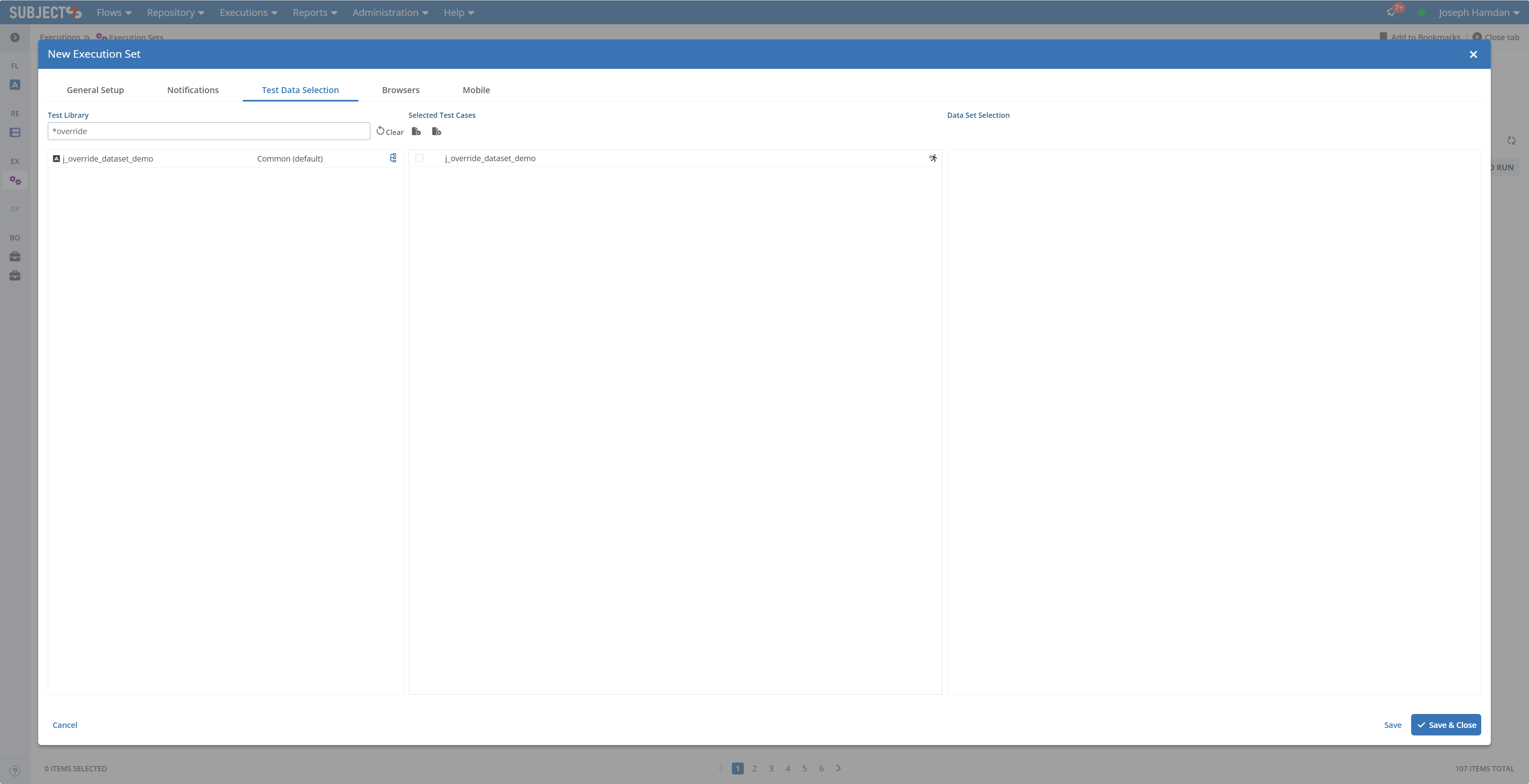

3- Your execution set has the selected dataset:

4- In Jenkins:

A. add dataset information:

B- Pipeline should be:

step([
  $class: 'Subject7StepBuilder',
  credentialId: "TODO",
  sync: true,
  reportFormat : "HTML",
  delay: 0,
  build : "1801",
  callbackArg : "34534534",
  timeout: 11000,
  continueOnError: false,
  executionSetConfigurations: [
    [
      name: "demo",
      projectName: "Common",
      pool: "default",
      rotation: 1,
      browserTypes: ["CHROME"],
      dataSetSelections: [
        [
           name: "j_override_dataset_demo",
           testCase: "jenkins_demo_dataset",
           dataSets: "j_override_dataset_demo"
        ]
      ]
     ],
 ]
])

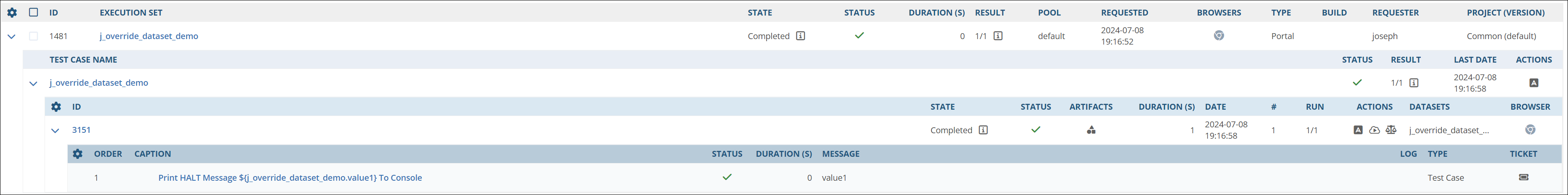

5- Trigger the execution to start and it should pick the default value which is already added in the dataset on the platform

Overriding the default Values:

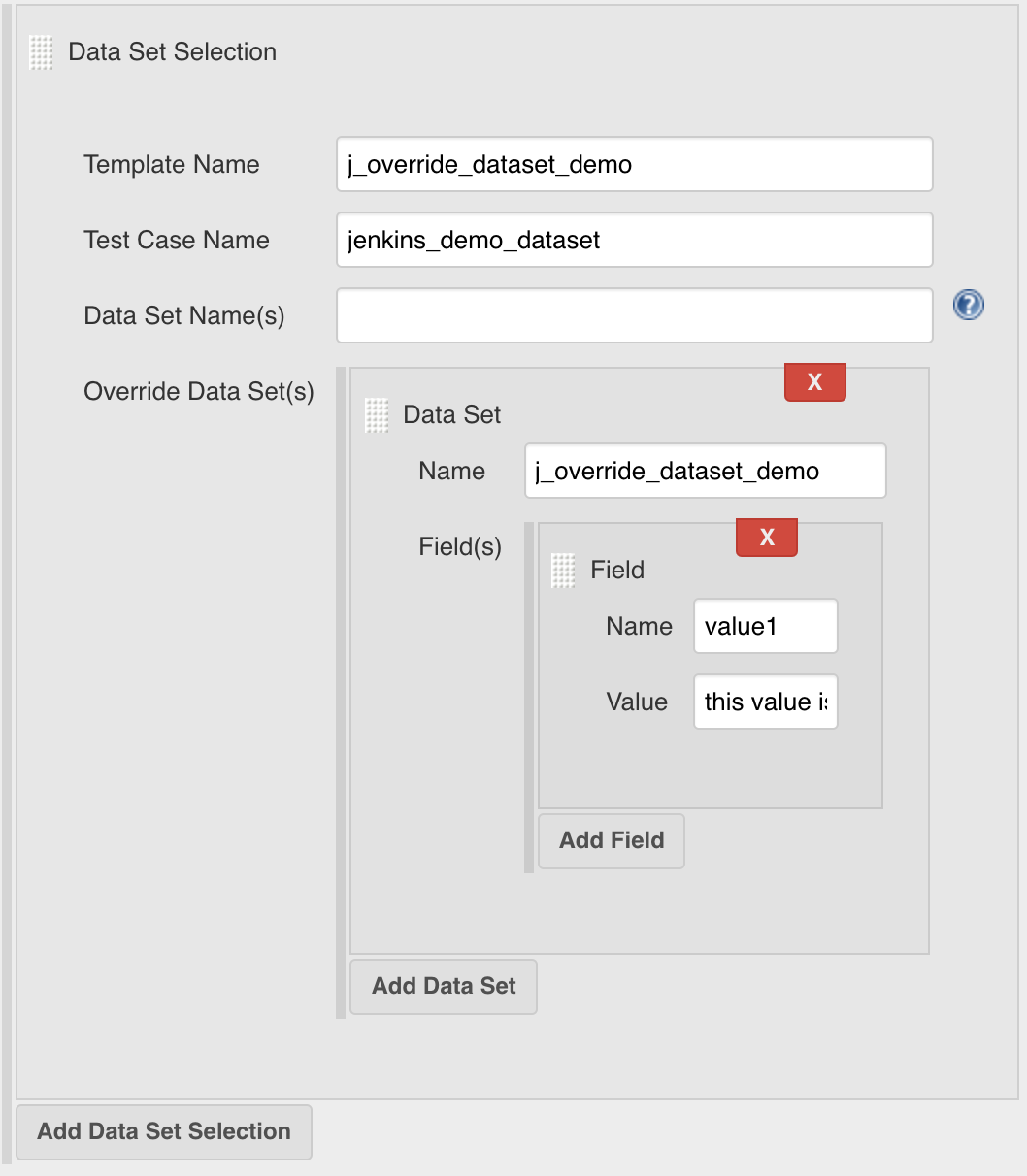

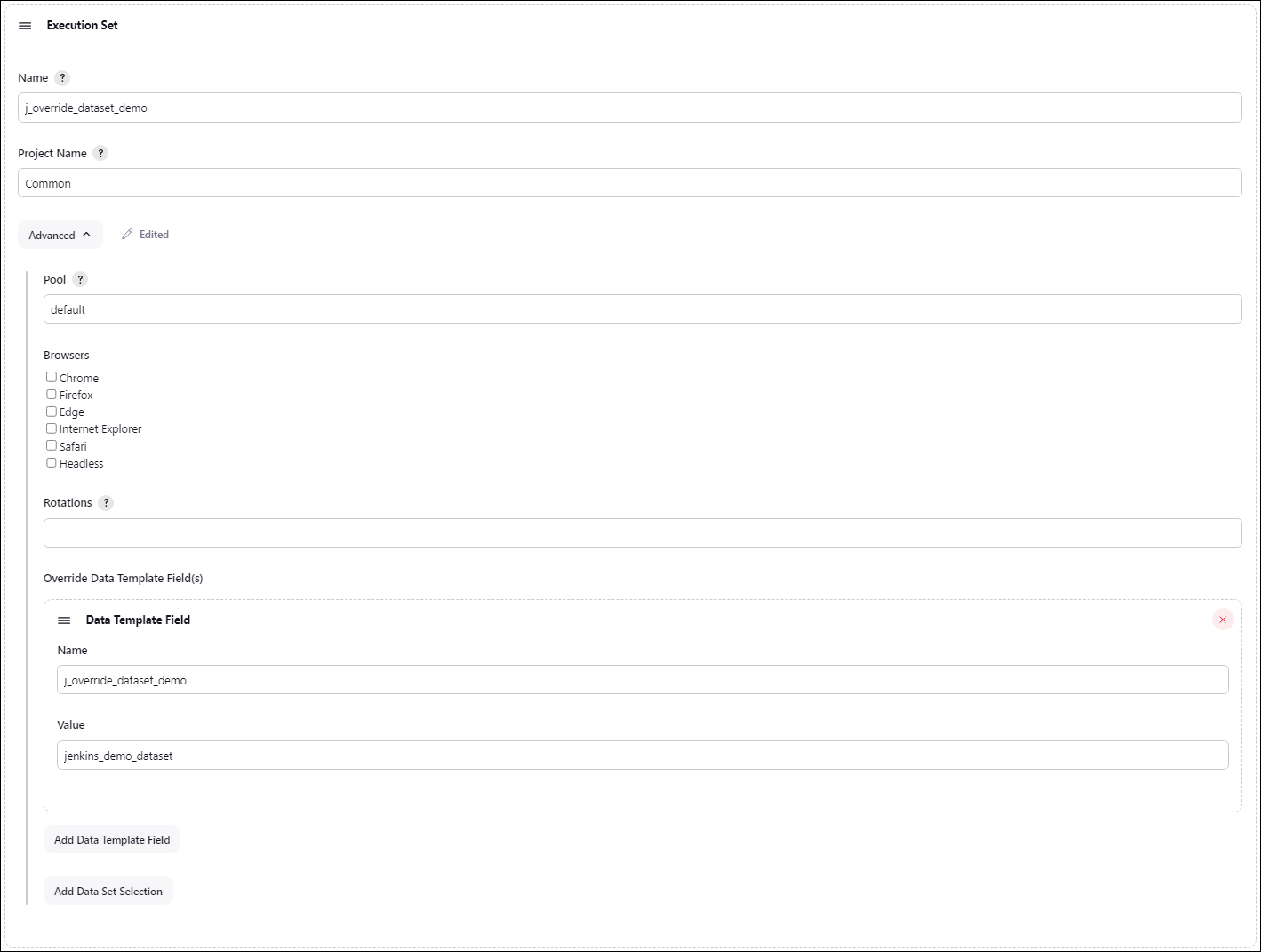

6- A. To override these values, specify the value as below:

B- Add pipeline and modify as needed:

step([
  $class: 'Subject7StepBuilder',
  credentialId: "TODO",
  sync: true,
  reportFormat : "HTML",
  delay: 0,
  build : "1801",
  callbackArg : "34534534",
  timeout: 11000,
  continueOnError: false,
  executionSetConfigurations: [
    [
      name: "demo",
      projectName: "Common",
      pool: "default",
      rotation: 1,
      browserTypes: ["CHROME"],
      dataSetSelections: [
        [
           name: "j_override_dataset_demo",
           testCase: "jenkins_demo_dataset",
           overriddenDataSets: [
              [
                name: "j_override_dataset_demo",
                fields: [
                   [
                      name: "value1",
                      value: "this value is overridden in Jenkins plugin"
                   ]
                ]
              ]
           ]
        ]
      ]
     ],
 ]
])

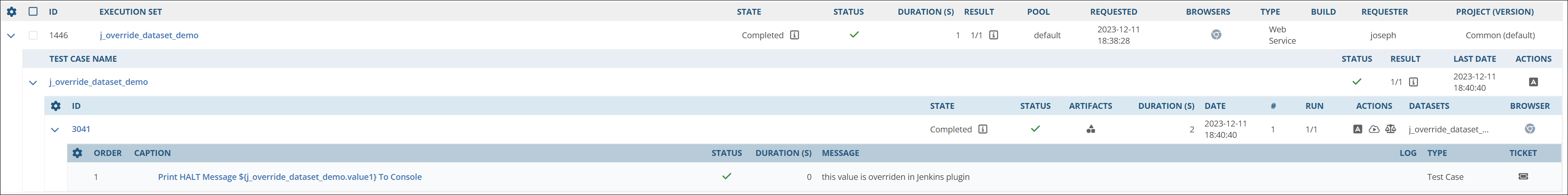

7- Trigger the execution to start and it should pick the values you specified in Jenkins above.
